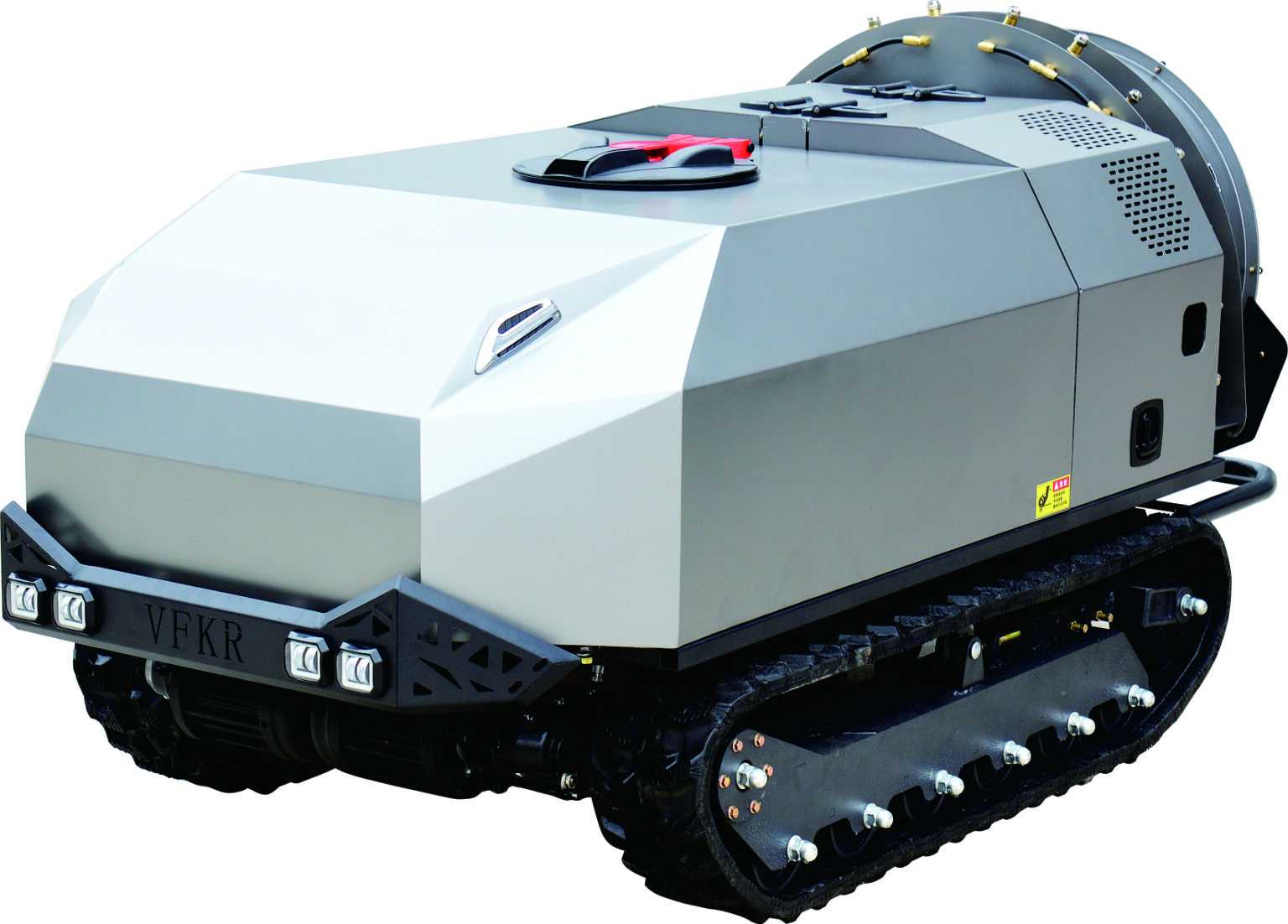

RC/GPS TRACK SPRAYER
KF-HB1300L
The remote control/GPS crawler sprayer is suitable for various hilly and complex orchards. The crawler travel system can achieve on-site turning.
The dual power systems can be controlled separately, with one hybird power unit driving the travel system and the other engine driving the spraying system (One general hybird power unit). The crawler travel system can achieve on-site turning.
| Model | KF-HB1300L |
|---|---|
| Walking style | Hybrid |
| Battery voltage (V/A) | 72/87 |
| Engine model | 490 Diesel engine,Four cylinder |
| Power (HP) | 50 |
| Generator power | 5000W |
| Working mode | Extended-range |
| Extended range power | 12000W |
| Tank capacity (L) | 1200L-1500L(Can be customized) |
| Climbing angle(¡ã) | 20-40 |
| Working speed (km/h) | 0-5 |
| Work efficiency (ha/h) | 0 – 15 |
| Work Pressure (BAR) | 20-45 |
| Drug pump flow (L/min) | 103-116 |
| Sprayer Nozzles No. | 30 |
| Spray radius (m) | 10-15 |
| Spray height (m) | 6 |
| Power of spraying (cc) | 420 |
| Track width (mm) | 180 |
| Track grounding length (mm) | 1830 |
| Length*Width*Height (mm) | 3300*1400*1350 |
| Machine weight (kg) | 1500 |
| Fan diameter (mm) | 900 |
| Option | GPS |
