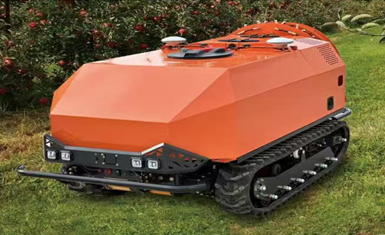

RC/GPS TRACK SPRAYER
KF-HB500L
The remote control/GPS crawler sprayer is suitable for various hilly and complex orchards. The crawler travel system can achieve on-site turning.
The dual power systems can be controlled separately, with one hybird power unit driving the travel system and the other engine driving the spraying system (One general hybird power unit). The crawler travel system can achieve on-site turning.
| Model | KF-HB500L |
|---|---|
| Walking style | Hybrid |
| Battery (V/A) | 48/58 |
| Range Extender power (cc) | 225 |
| Power generation (kW) | 5 |
| Medicine box capacity (L) | 500 |
| Climbing angle | 20-40 |
| Working speed (km/m) | 3/6 |
| Work efficiency (ha/h) | 0.7-1 |
| Work Pressure (Mpa) | 2.1-4.5 |
| Drug pump flow (L/min) | 30-45 |
| Spray radius (m) | 8/15 |
| Power of spraying (cc) | 420 |
| Length*Width*Height (mm) | 2300*1100*1050 |
| Weight (kg) | 540 |
| Fan diameter (mm) | 700 |
