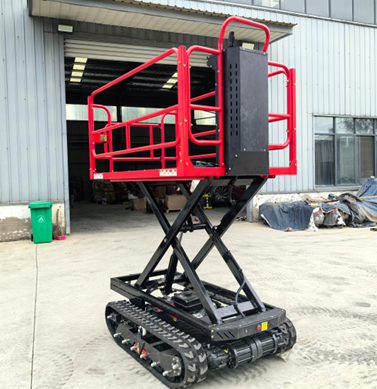

LIFTING AND TRANSPORT PLATFORM
KR-LC
The KR-LC Lifting and Transport Platform is a reliable tool for lifting and moving goods.
It simplifies heavy-load handling in warehouses or workshops, effectively boosting work efficiency.
| Model | KR-LC |
|---|---|
| Overall Dimension (mm) | 1960*1170*1580 |
| Total Weight (kg) | 625 |
| Maximum Lifting Height (mm) | 500-1800 |
| Track Ground Contact Length (mm) | 1000 |
| Track Width (mm) | 180 |
| Travel Style | Hybrid (Pure Electric Optional) |
| Dual Travel Drive Motors (kW) | 1.8 |
| Battery (V/AH) | 48/58 (Optional 100-200AH) |
| Electro-Hydraulic Drive Motor (kW) | 1.5 |
| Range-Extender Power (kW) | 5 |
| Power Generation Capacity (kW) | 5 |
| Engine Displacement (cc) | 225 |
| Working Speed (km/h) | 0-5 |
