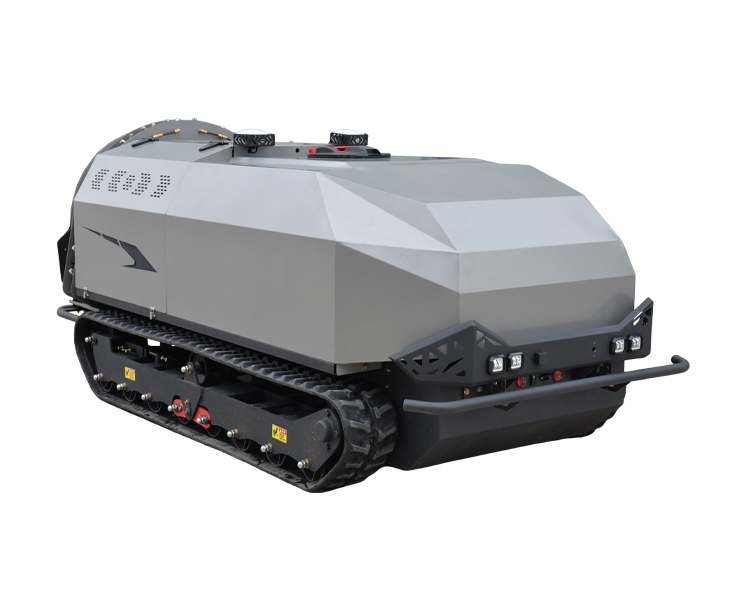

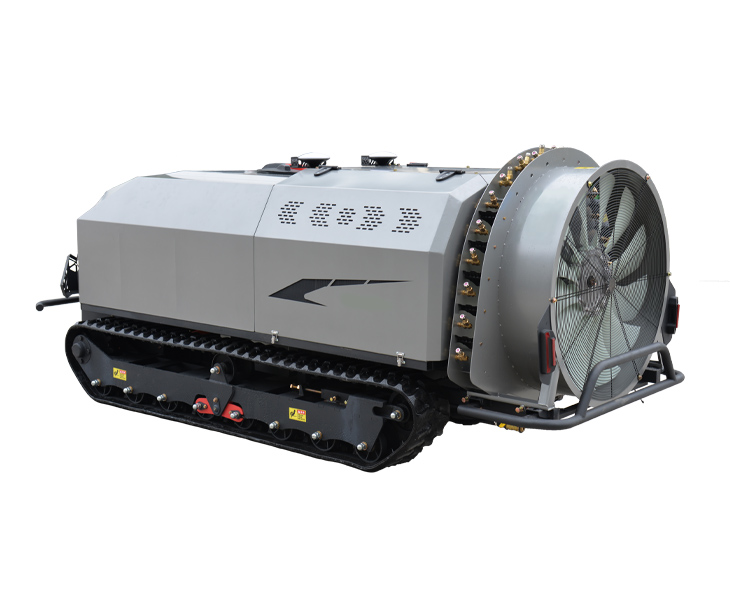

Remote/Auto Crawler Sprayer

KF-HB1300L

  • Remote/Auto Control
  • High Passability with Tracked Design
  • Diesel Hybrid
SPRAYER

introduce

This remote/auto crawler agricultural sprayer is ideal for orchard maintenance in hilly and mountainous terrains. Compare with KF-HB500L, it is powered by a diesel-electric hybrid system with 5–8 hours of pure electric endurance and designed for easy operation. The sprayer is equipped with a reinforced crawler chassis for enhanced terrain adaptability and a dual-power system for consistent performance. Its 1300L high-capacity water tank allows extended pesticide application per trip, maximizing your orchard management efficiency.

ModelKF-HB1300L
Walking styleHybrid
Battery voltage (V/A)72/87
Engine model490 Diesel engine,Four cylinder
Power (HP)50
Generator power5000W
Working modeExtended-range
Extended range power12000W
Tank capacity (L)1200L-1500L(Can be customized)
Climbing angle(¡ã)20-40
Working speed (km/h)0-5
Work efficiency (ha/h)0 – 15
Work Pressure (BAR)20-45
Drug pump flow (L/min)103-116
Sprayer Nozzles No.30
Spray radius (m)10-15
Spray height (m)6
Power of spraying (cc)420
Track width (mm)180
Track grounding length (mm)1830
Length*Width*Height (mm)3300*1400*1350
Machine weight (kg)1500
Fan diameter (mm)900
OptionGPS
